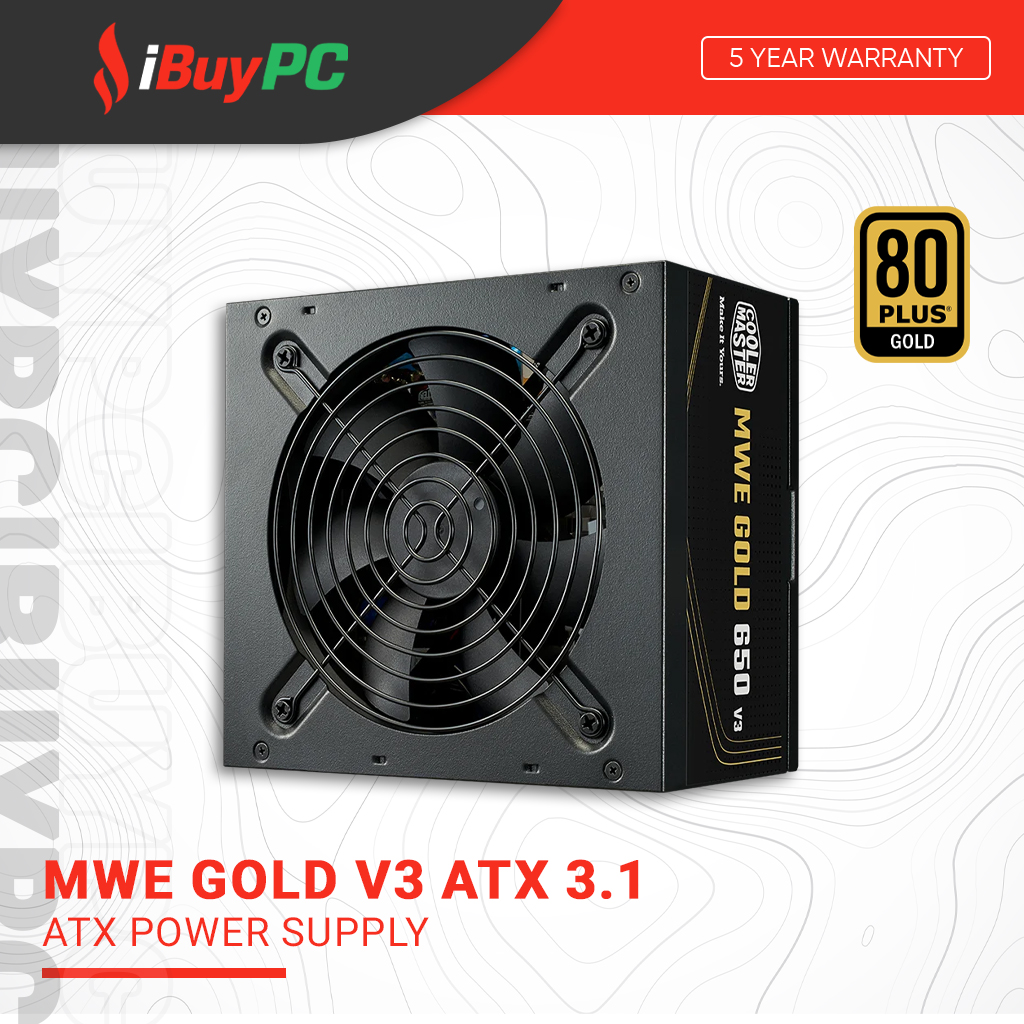

Cooler Master MWE Gold V3 ATX3.1 650W 80Plus Gold Power Supply

✅SPEC

📌ATX Version: ATX 12V Ver. 3.1

📌PFC: Active PFC

📌Input Voltage: 100-240V

📌Input Current: 10-6A (850/750W), 10-5A (650W), 8-4A (550W)

📌Input Frequency: 50-60Hz

📌Dimensions (L x W x H): 140 x 150 x 86 mm

📌Fan Size: 120mm

📌Fan Bearing: HDB

📌Fan Speed: 2400 RPM (850/750/650W), 1800 RPM (550W)

📌Efficiency: ≥90% @ Typical Load

📌80 PLUS Rating: 80 PLUS Gold

📌ErP 2014 Lot 3: Yes

📌Operating Temperature: 0-40°C

📌Power Good Signal: 100 – 150 ms

📌Hold Up Time: ≥16ms at 80% Load

📌MTBF: >100,000 Hours (850/750W), >100,000 Hours @ 25℃ambient (650/550W)

📌Protections: UVP / OVP / OPP / OTP / SCP / OCP

📌Regulatory: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region’s requests.)

📌ATX 24 Pin Connectors: 1

📌EPS 8 Pin / 4+4 Pin Connectors: 2

📌PCI-e 6+2 Pin Connectors: 4 (850/750/650W)

📌SATA Connectors: 6

📌Peripheral 4 Pin Connectors: 3

📌12V-2×6 (12+4 Pin) Connectors: 1 (850/750W)

📌Series: MWE Gold Series

📌Modular: Non Modular

📌Form Factor: ATX

📌80 Plus Efficiency: Gold
